Ultrasonic liquid level gauge/meter is used for fuel level measurement in vehicle fuel tanks in order to control fuel consumption. The measurements are realized by the ultrasonic radiator installed directly on the external bottom part of the fuel tank and data processing box. The ultrasonic fuel level meter can measure levels of diesel and petrol or other liquid materials depending on software settings.
Ultrasonic liquid level meter ULM-1000 measures changing level of any liquid (diesel, gasoline, water, liquefied gas, milk etc. ) in moving And fixed tanks (vehicles fuel tanks, fuel tank tracks, railway tank cars, industrial tanks and liquid storages). The measurement are provided through the tank bottom so no damage and drilling of the tank are needed.
The measured data could be: 1. Saved in the internal memory which capacity is enough for 1 month autonomic work 2. Sent via a transceiver such as GPRS modem or GPS/ GPRS tracker in real time.
Using ULM-1000 fuel level meter you can get the following important information: -Fuel level and amount in the tank -Amount of dispensed fuel -Fuel consumption rate -Theft detection -Operational and statistical reports
3. Technical Characteristics
Power supply voltage
Power protection up to
18 –800mm(optional up to1000mm)
Max load current of outputs
Max current consumption
Analog interface(0 …1023)
Frequency output interface (U=10V)
Quantity of outputs EIA 485
Quantity of outputs EIA 485/2321
Accuracy of fuel level meter in static
not more 0.5 %
Accuracy of fuel level meter in dynamic
not more 3.0 %
Accuracy of fuel level measurement
not more 3.0 %
Degree of the radiator protection IP67
2 MB(30 days if record once in 30 sec.)
Galvanic isolation of the power supply
Galvanic isolation of the outputs
4. Installation of Oil Level Gauge
Fuel Level Indicator Data Shows:

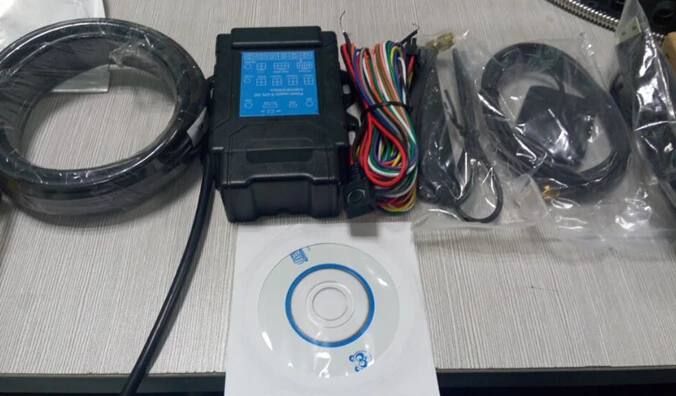

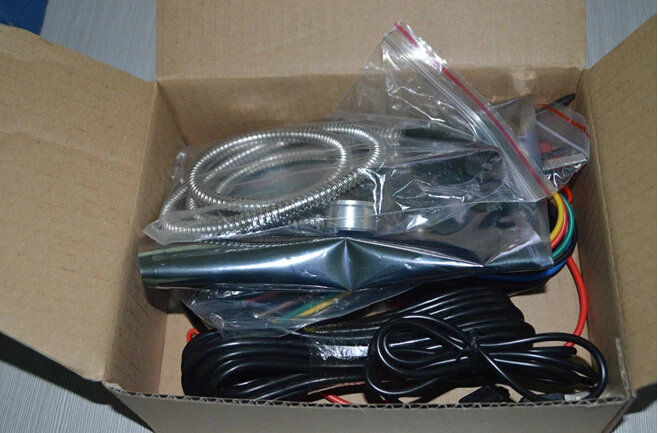

Complete Set Ultrasonic Fuel Level Meter:
Measurement Theory Picture:
5.ULM Connect to GPS
this product is based on GSM / GPRS network and GPS satellite positioning system, set positioning,monitoring level uploading and tracking functions in one of the new products through the Internet to locate and monitor remote targets.
supports GSM / GPRS and automatic on-line reconnection
Set positioning, monitoring, and tracking level upload multiple functions and integration
Support for GPS positioning
Please select a qualified engineer to install when installing.
installation environmentdo not exceed the GSM performance indicators, note the position of the antenna fixed to ensure a good signal.
Please pay attention to dust and water when choose installation location
Connected GSM antenna and GPS antenna, and find a suitable location fixed, ensure good signal acceptance, GPS antenna is fixed in the outdoor signal good location when installed.

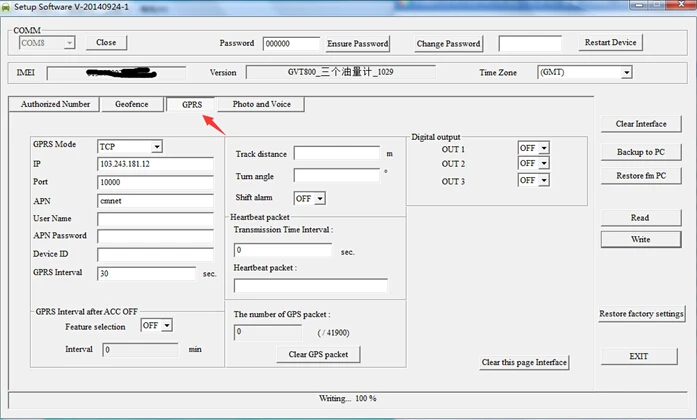

Connected to Computer for setting:
Check fuel changes:
Notice: 1. To maintain the equipment in a dry environment, humid environment tends to damage the internal circuitry. 2. Do not put a dusty environment. 3. Do not put too hot or cold places. 4. Do not use in severe vibration equipment. 5. Please use a dry cloth to clean, do not use chemicals and detergents. 6. Do not paint the device, which may lead to internal circuit. 7. Do not disassemble the device. 8.Please read the manual carefully before usingto avoid damage to devices.
